Switch Panel - 芯華電腦 VEGA

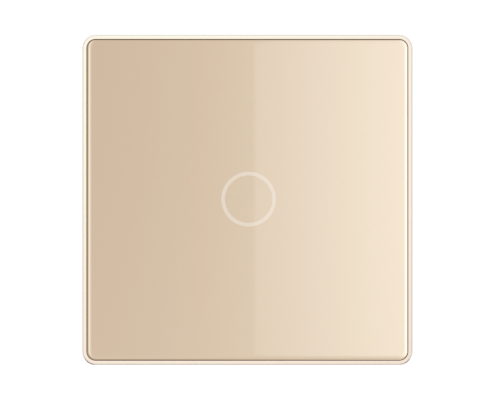

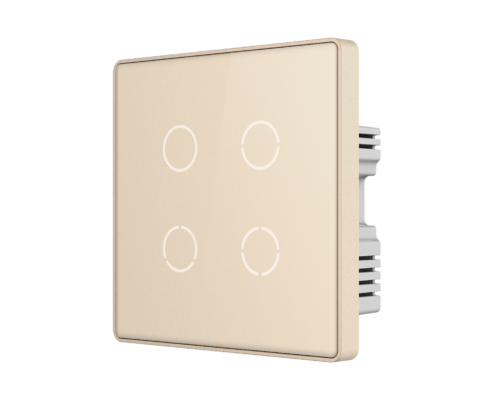

Switch Panel

P-T-01-S、P-T-02-S
P-T-03-S、P-T-04-S

Switch Panel changes the traditional control mode, and can be operated by touching the panel. It is more convenient and safer than traditional switches, and has status synchronization and remote upgrade functions. Remote control of the carrier terminal equipment can be realized through the mobile phone APP and the gateway.

商品カテゴリー: スイッチパネル

Features Specifications Wiring Diagram

Tempered glass panel, seamless design to prevent electric shock
No mechanical contacts for longer life
Support firmware update online
Broadband PLC technology is 0 radiation
Touch panel and controlled device can be arbitrarily combined without wiring restrictions

Operating Voltage: AC 100V~240V
Operating Frequency: 50/60Hz
Power Consumption: < 0.5W
Number of buttons: 1/2/3/4
Power Source: AC Neutral and Live line
Communication Technology：Broadband PLC
Installation type: 86mmx86mm Mounting Box
Operating Temperature: -10°C ~60°C
Operating Humidity: 10%RH ~ 85%RH
Dimension: 87.5mm(L)*85.5mm(W)*38mm(H)
